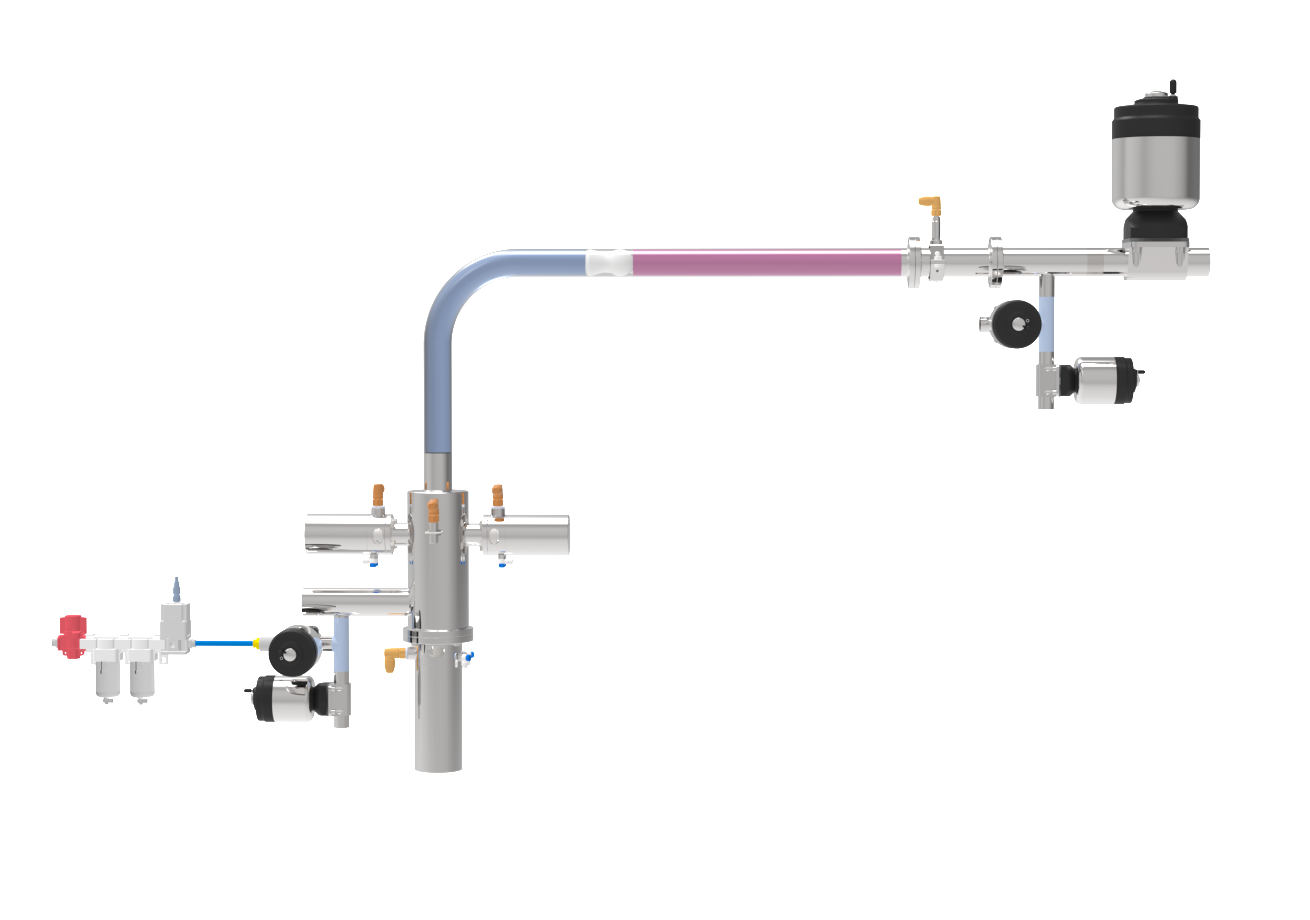

ASEPTIC PIGGING SYSTEM

SATISFY YOUR HIGH STANARD HYGIENIC REQUIREMENT

In fully automated processes in the food and beverage industry the cleaning procedure is of equal importance to production itself for hygienic reasons. Generally the cleaning procedures must take place cyclically; that is to say, the frequency is high, often daily to guarantee the required freedom from bacteria.
However, HYPERFORE aseptic pigging system can recover high valued products out of the production lines. As the none dead space design makes it a guardian that the entire pigging system is sterile.Not only our aseptic pigging system is highly suitable as an automatic cleaning method for pipelines in sterile plants, but also it makes closed piping systems possible.


The aseptic pigging system is particularly suitable for dairy, food, beverage, and pharmaceutical industries.

Major Features

High Temperature Resistance

The aseptic pigging system can withstand 150℃ high temperature sterilization.

Easily Customizable

DN25 to  DN100 ,ISO1inch to ISO 4 inch
For DIN11850, ISO pipework
Other standard upon request

Hygiene friendly design

This desing structure is suitable for recovery of sensitive liquid requiring no bacteria residue between two production process.

Super Cost Effective

Over 99.5% of the pipeline products can be recovered, in about 6 months to take back your investment

Many Benefits

Reducing waste water and treatment costs, reducing chemical detergent usage, shortening cleaning time

Allowing SIP & CIP

SiP: 121 ℃ steam for 30 minutes
CIP: 90 ℃ hot water sterilization for 30 minutes

General specifications

Hyperfore aseptic (sterile ) pigging system fits in sterile industries (pipelines) , such as medicine pipeline, dairy pipeline , liquid food pipeline and all the industries that require strict aseptic production environment. In these industries, the pigging process must ensure aseptic operation, otherwise, contamination may occur and harm the product quality.

aseptic pigging system
DIN11850DN25,DN40,DN50,DN65,DN80,DN100,DN125,DN150
ISO1”,1.25”,1.5”,2”,2.5”,3”,3.5”,4”,5”,6”
MaterialStainless Steel304,316L for parts contacting products
Pressureless than or equal 0.8MPa
Polishing OR<Ra1.6,ID<Ra0.8,ID<Ra0.375
Temperatureless than150°C
Sealing EPDM,FKM,VMQ
Pig driving Pressure less than or equal 0.2MPa normally
Sterile pigging system technical data

The table above displays the general specifications of the aseptic pigging system

  • The launching station is aseptic design, no dead corner, easy to clean
  • The launching station is closed and has no connection with outside
  • The pig is kept in the aseptic launching station which is completely sealed off from its surroundings
  • Low maintenance and operation costs
  • The whole system is aseptic,The pig can be cleaned by means of CIP or SIP in the station with cleaning agents or sterile steam
  • Easy to integrate into the production pipeline
  • The amount of sewage is greatly reduced
  • Standard working pressure: less than 8bar
  • DN25-DN150
  • ISO1”-ISO6”
  • Connection:
  • Sterile Flange
Part Nr. SIZE
DGSSFBAD025A DN25  Φ29*1.5Φ29*1.5
DGSSFBAD040A DN40 Φ41*1.5Φ41*1.5
DGSSFBAD050A DN50 Φ53*1.5Φ53*1.5
DGSSFBAD065A DN65 Φ70*2Φ70*2
DGSSFBAD080A DN80 Φ85*2Φ85*2
DGSSFBAD100A DN100  Φ104*2Φ104*2
DGSSFBAD125A DN125 Φ129*2Φ129*2
DGSSFBAD150A DN150  Φ154*2Φ154*2
Sterile launcher technical data

DN25-DN150

CONNECTION
FLANGE

The table above displays the general specifications of the aseptic pig launcher

Part Nr. SIZE
DGSSFBAT025A 1″   Φ25.4*1.5 Φ25.4*1.5
DGSSFBAT032A 1.25″ Φ31.8*1.5 Φ31.8*1.5
DGSSFBAT038A 1.5″  Φ38.1*1.5 Φ38.1*1.5
DGSSFBAT051A 2″ Φ50.8*1.5 Φ50.8*1.5
DGSSFBAT064A  2.5″  Φ63.5*2.0 Φ63.5*2.0
DGSSFBAT076A 3″  Φ76.1*2.0 Φ76.1*2.0
DGSSFBAT089A 3.5″ Φ88.9*2.0 Φ88.9*2.0
DGSSFBAT101A  4″  Φ101.6*2.0 Φ101.6*2.0
DGSSFBAT127A 5″ Φ127.0*2.0 Φ127.0*2.0
DGSSFBAT152A 6″ Φ152.4*2.0 Φ152.4*2.0
Sterile launcher technical data

ISO1 inch-ISO6 inch

CONNECTION
FLANGE

The table above displays the general specifications of the aseptic pig launcher

Hygienic receiver

Part Nr. SIZE ABC
DHRSFBAD025A -C1 DN25 10370Φ29*1.5
DHRSFBAD040A -C1 DN40 118 82 Φ41*1.5
DHRSFBAD050A -C1  DN50 148 94 Φ53*1.5
DHRSFBAD065A -C1 DN65168 113 Φ70*2.0
DHRSFBAD080A -C1 DN80 202 133Φ85*2.0
DHRSFBAD100A -C1 DN100232159Φ104*2.0
DHRSFBAD125A -C1 DN125 183 Φ129*2.0
DHRSFBAD150A -C1  DN150 213 Φ154*2.0
Hygienic recevier technical data
aseptic piggin system receiver
RECEIVING STATION
CONNECTION: FLANGE

The table above displays the general specifications of the hygienic receiver

Part Nr. SIZE ABC
DHRSKBAD025A-F1 DN25 10370Φ29*1.5
DHRSFBAD040A-F1DN40 118 82 Φ41*1.5
DHRSFBAD050A-F1 DN50 148 94 Φ53*1.5
DHRSFBAD065A-F1 DN65168 113 Φ70*2.0
DHRSFBAD080A-F1 DN80 202 133Φ85*2.0
DHRSFBAD100A-F1 DN100232159Φ104*2.0
DHRSFBAD125A-F1 DN125 183 Φ129*2.0
DHRSFBAD150A-F1 DN150 213 Φ154*2.0
Hygienic recevier technical data
aseptic piggin system receiver
RECEIVING STATION
CONNECTION: CLAMP

The table above displays the general specifications of the hygienic receiver

Sanitary Receiver

Part Nr. SIZE ABC
DHRSFBAT025A -F11″ 10366Φ25.4*1.5
DHRSFBAT032A -F1 1.25″  113   74Φ31.8*1.5
DHRSFBAT038A -F1 1.5″  118 79Φ38.1*1.5
DHRSFBAT051A -F1 2″ 13892Φ50.8*1.5
DHRSFBAT064A -F1 2.5″  168 107Φ63.5*2.0
DHRSFBAT076A -F1   3″ 178125Φ76.1*2.0
DHRSFBAT089A -F1 3.5″ 212137Φ88.9*2.0
DHRSFBAT101A -F1  4″  232157 Φ101.6*2.0
DHRSFBAT127A -F15″ Φ127.0*2.0
DHRSFBAT152A -F16″Φ152.4*2.0
Hygienic recevier technical data
aseptic piggin system receiver
RECEIVING STATION
CONNECTION: FLANGE

The table above displays the general specifications of the hygienic receiver

Part Nr. SIZE ABC
DHRSKBAT025A -C11″ 9950.5Φ25.4*1.5
DHRSKBAT032A -C1  1.25″  109   50.5Φ31.8*1.5
DHRSKBAT038A -C1  1.5″  11464Φ38.1*1.5
DHRSKBAT051A -C1  2″ 13464Φ50.8*1.5
DHRSKBAT064A -C1   2.5″  17691Φ63.5*2.0
DHRSKBAT076A -C1  3″ 186106Φ76.1*2.0
DHRSKBAT089A -C13.5″ 216119Φ88.9*2.0
DHRSKBAT101A -C1 4″  236130 Φ101.6*2.0
DHRSKBAT127A -C15″ Φ127.0*2.0
DHRSKBAT152A -C16″166.8Φ152.4*2.0
Hygienic recevier technical data
aseptic piggin system receiver
RECEIVING STATION
CONNECTION: CLAMP

The table above displays the general specifications of the hygienic receiver

Frequently
Asked
Questions

Do you manufacture cost intensive and highly hygienic liquid products? Do you have trouble in reducing product waste,or improving product profit? We have the answer you want,just contact!

How does the detector work

The pig is an important part of the pig system. However,the pig is invisible when running in the pipeline, so the pig detector is to help detect the position of the pig.

The role of pig mechanical speed controller

The mechanical speed controller provides a constant driving force for the pig. As a result, it enables the pig to clean the piggable pipeline in an even speed.

Aseptic product recovery system working principle

The sterile product recovery system allows the recovery of cost intensive products with extremely high requirements for hygiene in the pipeline. On one hand, the pig travels in the pipeline and pushes the product out. On the other hand, CIP can then be used to remove the remaining product film on inside of the pipe wall. Also, the aseptic pigging system significantly reduces water waste and cleaning cost.

The importance of the sterile air filtering system

In fact, the pig needs compressed air or other liquid medium to travel in the pipe. Because in food, beverage, medicine and other similar industries, the production pipeline usually has high requirements for hygiene. So, the driving medium that contacts the pipeline should be aseptic, too. As a result, when we choose compressed air as the driving medium in the pigging system, we must ensure that the hygiene level of the compressed air meets the requirements of relevant industries and cannot cause product pollution. Therefore, in order to purify the driving air, we need a sterile air filtering system.

Correct installation direction of a pigging system

HYPERFORE pigging system components are suitable for both horizontal installation and vertical installation. Meanwhile, we will provide the most suitable design and installation advice according to your pipeline situation.
