  • pigging application in pharmaceutical industry
  • pigging system of pharmaceutical production line
  • pharmaceutical recovered by pigging.png

Hyperfore recently designed and installed automatic sanitary pigging systems on three production lines for a famous pharmaceutical manufacturer in China. The case is one of our successful pigging applications in pharmaceutical industry.The turnkey project includes automatic pigging system equipment, piggable valves, process design, automation system, on-site installation and commissioning, operation training, and technical support. The pigging systems significantly reduced product waste, improved the output and profit up to 5%.

Take one of the production lines for example, the pipeline was 280 meters. Without pigging system, the residue pharmaceutical liquid could be 540L, which would all be treated as waste product. After using pigging system, the pigging process was operated once a day, and it helped to save about $41035 every month, the savings was significant. According to testing result after installation and commissioning, the pigging system largely lowered the pipeline cleaning difficulty and the waste water treatment pressure.

Pipeline Pigging Handbook PDFDownload

Pigging Application in Pharmaceutical Industry

Hyperfore recently delivered an automatic pigging system turnkey project for three production lines in a pharmaceutical plant in China. The following is detailed introduction of the project.

pigging application in medicine production line
pigging application in medicine production line
ClientPhamaceutical manufacturer
Specification Value
ProductMedicine Syrup
Viscosity9000 cp
Temperature18 Celsius
Pipelines to be pigged3 pipelines
Pigging starting point from mixing tanks on the 2nd floor in workshop No.1
Pigging ending pointto pharmaceutical tanks on the 3rd floor in
workshop No.2
pipeline length280m,200m,180m
pigging application in pharmaceutical industry
Pigging application in pharmaceutical industry

Hyperfore Tailored Pigging Solutions

  • Supply Scope: sanitary automatic pigging systems, pigging automation system, piggable valves, piggable bends and tees, pig speed controller, etc., on-site installation and commissioning, technical training, spare parts, after-sales services.

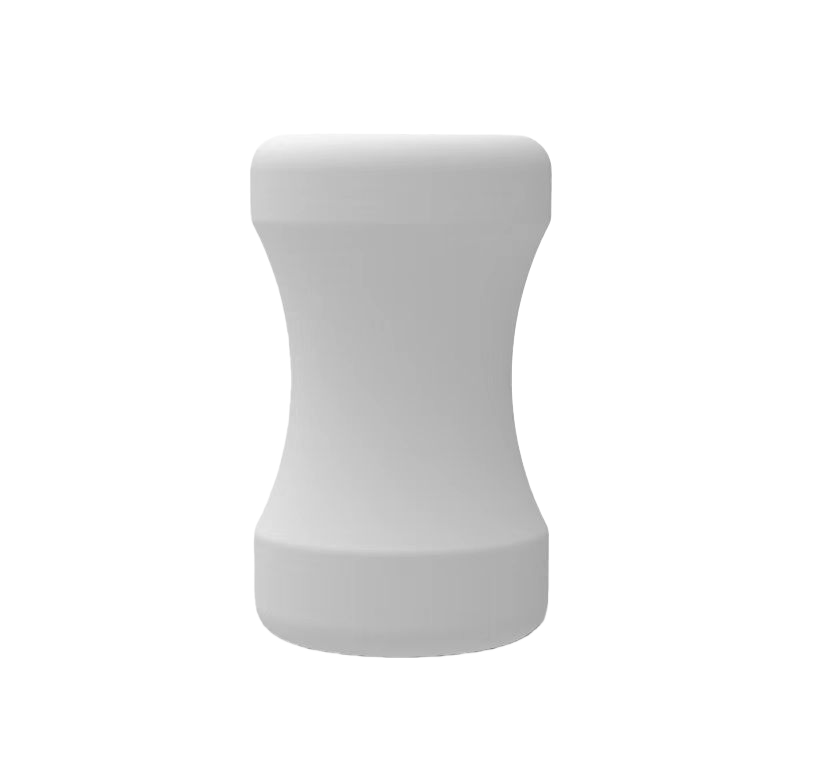

  • There were altogether three pigging pipelines. The diameter was 2inch, the pipeline length was 280 meters. the pipes had smooth interior surface and were properly installed, so we recommended one-piece pipeline pigs.
  • The pig started from the automatic launching station and stopped at the receiving station. It took 7 minutes to complete the pigging process. The recovery rate was 95%, the pigging process efficiently cleaned the residue product in the pipeline, significantly lessened the amount of CIP agent and water, and largely improved the production efficiency.
  • Hyperfore also supplied the automatic control system with HMI and SCADA system. It could communicate with the main control system through network. The pigging automation control system decreased manual labor and errors. The pigging system also supported remote operation via IOS / Android mobile devices, as well as Mac and Windows computers.
  • Hyperfore’s engineer equipped the waste discharge pipe with a conductivity meter, and the device could precisely measure the concentration of ions , which was also indicative of the performance of the pigging process. By using this process the pigging efficiency was optimized. The consumption of pure water and cleaning agents was also largely reduced.
Call To Action
SpecificationValueSpecificationValue
Unit price per liter$3Product volume per meter of pipe2.03L
Recycling Rate95%Total product volume of 280 meter pipe568.4L
Pipe diameter2inchRecycled product volume per day540L
Pipe length280mRecycled product volume per month13500L
Pigging times per day1 Amount saved per month$40500
Pigging times per month25Cost saving in sewage disposal per month$535
Total savings per month$41035

Company Profile

Hyperfore is a professional sanitary pigging systems and solutions supplier. We are sauce factory for sanitary pigging systems manufacturing. We boast rich experience of delivering high-quality turnkey pigging projects. Our dedicated engineering team can offer tailored pigging solutions including: pigging equipment and products, pigging process design, automation control, commissioning, installation and guidance, remote technical support, operating training.

Hyperfore has a proven track record of implementing successful pigging projects for both domestic and international clients, covering a wide range of industries. The pigging system applications include:dairy, candy, chocolate, drinks, alcoholics, household liquids, toothpaste, chemicals, pharmaceuticals, lithium battery slurry, paints and coatings, pigments and so on.

Our factory occupies an area of 2000 square meters, divided into four sections. The manufacturing workshop is equipped with advanced machineries, the assembling and testing workshop ensures high product quality, the warehouse is well organized to ensure optional storage and efficient logistics, and our office area is spacious and modern.

Our skilled team is mainly composed of experienced engineers, automation engineers, process engineers, installation engineers, mechanical engineers, purchasing engineers and so on. They have a proven track record in pigging system and liquid transfer engineering, and their extensive experience brings expertise to every project.

Call To Action About Hyperfore

Our Advantages

Source
Factory

Customized
Solutions

Seamless
Integration

Modular
Design

Cost
Effective

High
Quality

Food
Approved

Robust
Reliable

Efficient
Logistics

Tailored
Service

Why Choose Hyperfore?

  • We are one of the most professional pipeline pigging companies. We offer a full line of pigging products, including pigging systems, pig launcher and receiver, pipe cleaning pigs, special piggable valves, piggable manifolds, pig trackers, piggable pipes and fittings, pigging automation, pigging solutions and much more.
  • Our pigging systems are high quality and designed for long service term, the investment recovery cycle is short, only requiring a few months.
  • Our team is mainly composed of skilled engineers, they are professional in pigging system and liquid transfer engineering projects.
  • Our proven pigging solutions and pigging applications cover many industries, such as chemicals, pharmaceuticals, paints, coatings ,dye, food, sauce, dairy, beverage, candy, liquid detergent, shampoo, toothpaste, and so on.
  • Hyperfore has extensive experience in pigging solutions. We have successfully implemented many high-quality pigging projects for both domestic and international clients.
  • We provide high levels of pipeline pigging(cleaning) services, covering pipeline cleaning services, installation and commissioning, on site and remote technical guidance and support, operation training, trouble shooting and spare parts, We always respond quickly and resolved things fast.

Certificates

As a professional sanitary pigging system and solutions supplier, we posses necessary certifications to meet different industry standard.

FDA Certificate
SGS Certificate
Phthalate-free Certificate
ISO9001 Certificate
Call To Action

Pipeline Pigging Products

Related Articles

Case Studies

Pipeline Pigging FAQ

Sanitary pigging systems can be applied to many industries and sectors, such as food, pharmaceuticals, drinks, chemicals, paints and coatings, candy, chocolate, shampoo, cosmetics and so on.

The price of a pigging system depends on many factors, such as the pigging system type, the production process of the customer, the technical service required by the customer, and so on. Please contact Hyperfore for solutions and pigging system quotations that is based on your specific needs.

At the very beginning, the large scraper that made of straws or barbed wires travels along the pipelines of petroleum, it made a screaming sound that like a pig’s sound. So the scraper is called “a pig” or ” a pipeline pig” .

A piggable paint system is a paint production line that is equipped with a pigging system. As a result, the paint pipeline can be pigged and the residue paint can be recovered.

There are 5 types of applications for single-pig recovery system, single source to single destination, single source to multiple destinations, multiple sources to multiple destinations, multiple sources to single destination, pigging system equipped with a manifold.
