Pigging Application in Jelly Candy Industry
Hyperfore has developed a semi-automatic, from single source to single destination sanitary pigging system solution to address the pipeline cleaning problems encountered by a jelly candy manufacturer. The jelly candy production pipeline is with jacketed water heating system, it is designed to maintain the candy in a liquid form. The launching station and the receiving station is manually operated, the size is DN65. We also supplied electric control cabinet to control the automatic components of the system. In this project, our scope of supply is pigging equipment, automation control system, on site commissioning and installation.
By recovering more than 99% of the residue products and largely reducing pipeline cleaning cost, the semi-automatic pigging system helps to generate savings of approximately 420 dollars every day and 10500 dollars every month. It greatly improved the production output and cut down the overall pipe cleaning cost. The jelly candy manufacturer expressed satisfaction with the system’s performance.
Pigging Application In Pipeline
The jelly candy pigging system turnkey project is a bidirectional single source to single destination pigging application in pipeline
| Specification | Value |
|---|---|
| Product | Jelly candy |
| Temperature | 60 Celsius |
| Viscosity | 20000cp |
| Pipeline material | SS316L |
| Hot water insulation jacket | Yes |
| Pigging starting point | After the pump |
| Pigging ending point | Storage tank |
| Elbows needing for change | 2 |
Pigging Solution Design
| Specification | Value | Specification | Value |
|---|---|---|---|
| Unit price per liter | $2.52 | Product volume per meter of pipe | 3.42 |
| Recycling rate | 99% | Total product volume of 50-meter pipe | 171 |
| Pipe diameter | 66mm | Recycled product volume per day | 170 |
| Pipe length | 50 meters | Recycled product volume per month | 4250 |
| Pigging times per day | 1 | Amount saved per month | $10700 |
| Pigging times per month | 25 | Cost savings in sewage disposal per month | $52 |
| Total savings per month | $10752 |
Company Profile
Hyperfore is a professional sanitary pigging systems and solutions supplier. We are sauce factory for sanitary pigging systems manufacturing. We boast rich experience of delivering high-quality turnkey pigging projects. Our dedicated engineering team can offer tailored pigging solutions including: pigging equipment and products, pigging process design, automation control, commissioning, installation and guidance, remote technical support, operating training.
Hyperfore has a proven track record of implementing successful pigging projects for both domestic and international clients, covering a wide range of industries. The pigging system applications include:dairy, drinks, alcoholics, household liquids, toothpaste, chemicals, pharmaceuticals, Chinese medicine, lithium battery slurry, paints and coatings, pigments and so on.
Our factory occupies an area of 2000 square meters, divided into four sections. The manufacturing workshop is equipped with advanced machineries, the assembling and testing workshop ensures high product quality, the warehouse is well organized to ensure optional storage and efficient logistics, and our office area is spacious and modern.
Our skilled team is mainly composed of experienced engineers, automation engineers, process engineers, installation engineers, mechanical engineers, purchasing engineers and so on. They have a proven track record in pigging system and liquid transfer engineering, and their extensive experience brings expertise to every project.
Our Advantages
Source
Factory
Customized
Solutions
Seamless
Integration
Modular
Design
Cost
Effective
High
Quality
Food
Approved
Robust
Reliable
Efficient
Logistics
Tailored
Service
Why Hyperfore Is the Best Choice
Certificates
As a professional sanitary pigging system and solutions supplier, we posses necessary certifications to meet different industry standard.

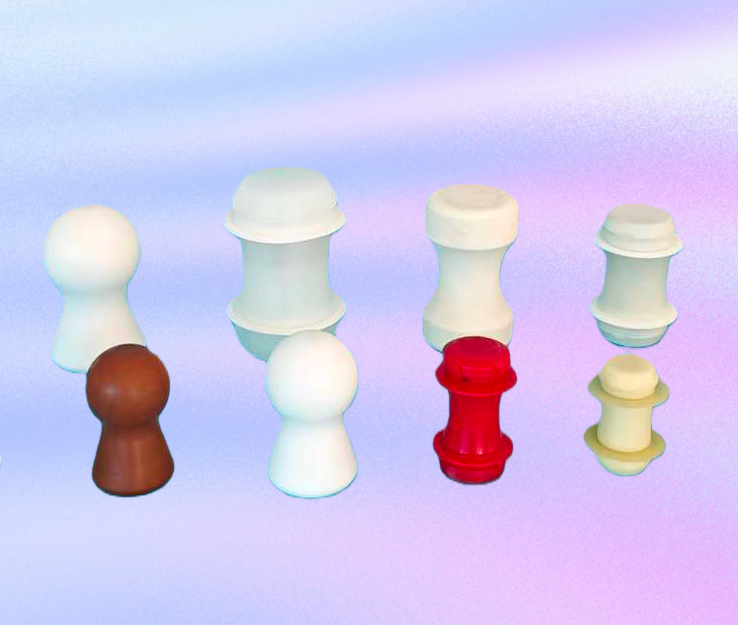

Pigging Products
